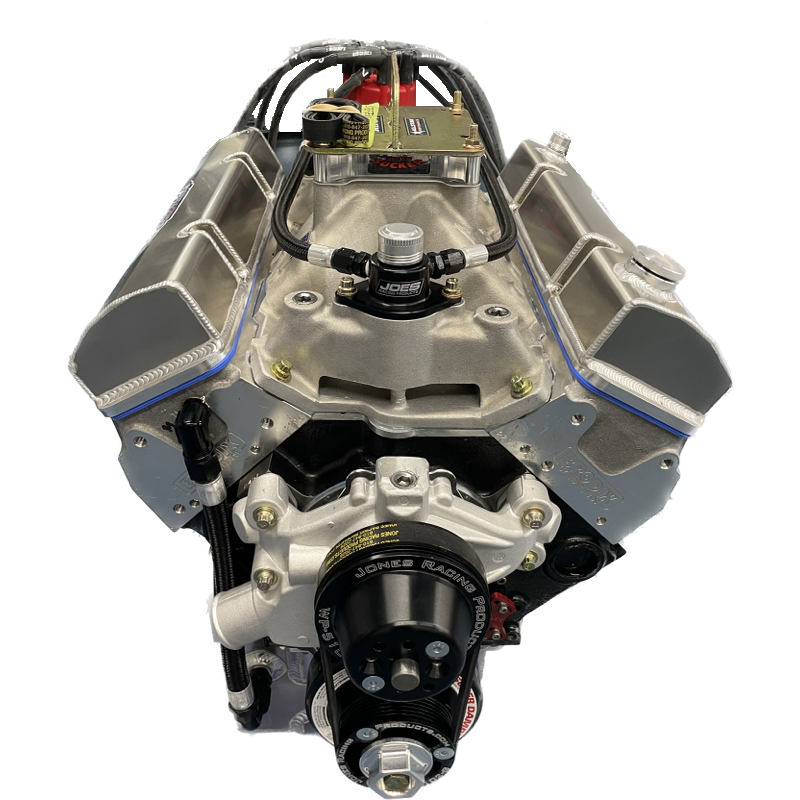

23° OPEN ENGINES
The MRE 23 degree open engine has been a work in progress for us for many years in which has yielded great results. We have had great feed back over this time from top drivers to help us tweak and fine tune to produce a great product. What sets this engine apart is our “Outlaw” head package. We are able to make BIG power and keep the driveability. We have worked every avenue of this engine to make it run and drive better with keeping phenomenal reliability. This includes camshaft and rocker design as well as relentless manifold testing.
Some of the advantages a 23 degree engine has over lower valve angle headed engines is the weight of the engine. These engines are lighter than 18, 15, and 13 degree engines by 20lbs minimum. My thought has always been, if we can produce the power the car needs and get the weight advantage, this is worth pursuing. The driveability of these engines sets it apart as well. The smaller intakes and intake runners really helps from this aspect. Then lastly, they are cheaper to build than these other engines as well.
These engines work in open UMP type modifieds, NE modifieds, and Steel Block latemodels. We have this settup where you can choose and build what package you need. It gives you all types of options from choosing cubic inch, parts quality, and wet or dry sump.

Start With Selecting your Cubic Inch Option

Product price: $19,763.59
Total options:
Order total:

Pay a deposit $2,000.00

$2,000 Deposit Required to begin production
SKU: MRE-23DOE Category:

Description

$2000 Deposit Required to Start Engine Build

Remaining Balance Due Via ACH When Engine Build is Complete



Open 23 Degree Engine Parts:
31161211 – Dart SHP Cast Iron Bare Block, 9.025″ Deck Height X 4.125″ Diameter Bore, 2-Piece Rear Main Seal, Small Block Chevy, Fully Machined
PTR09-1062 – Manifold End Seal Spacer, .250″ Thick, Roll Pins, Aluminum, Natural, Raised Port Heads, SBC, Kit
32000030 – SBC SHP Block Parts Kit – No Cam Bearings
DT-1T – Durabond Camshaft Bearing, Bi-Metal, Race Only, Dart Little M Block, Small Block Chevy, Set of 5
MS-909H-C – Main Bearings, H Series, 1/2 Groove, Standard Size, Tri Metal, Coated, Chevy, Small Block, Set of 5
CB-745HN – 2.000″ Journal Clevite Rod Bearing, H-Series, Standard Size, Tri Metal, Small Block Chevy, Set
CB-663HN – 2.100″ Journal Clevite Rod Bearing, H-Series, Standard Size, Tri Metal, Small Block Chevy, Set (388, 400, & 415 Stage 2)
9-3100A – Cloyes Hex-A-Just Timing Set
9-221 – Cloyes Timing Cover, 2-Piece, Adjustable Cam Button, Aluminum, Natural, Small Block Chevy, Non-Factory Roller
ATI917781 – ATI Harmonic Balancer, Super Damper, Internal Balance, Steel, Black, Small Block Chevy
XTS16375 – Xceldyne SBC Timing Pointer Kit
MRE-23CGK – Mullins Race Engines 23 Degree Gasket Kit With Composite Head Gaskets
K002-H08E – Point One Outlaw Head Stud Kit
2301-0720 – T&D Machine Products Rocker Arm Shaft System – MRE Outlaw With Single Oil Hole
MRE-E2925S2CIPM – Mullins Race Engines Stage 2 Ported Edelbrock 2925 Intake Manifold, Super Victor 23 Degree, Single Plane, Aluminum, Natural, Square Bore, SBC
MRE-23DOECSK – Mullins Race Engine 23 Degree Open Engine With 2925 Edelbrock Intake Complete Bolt/Stud Kit
39-11901 – Quart – Maxima Break In Oil 15W50 – Per Quart X 10
1061 – NAPA Gold Oil Filter
NGK R5671A-9 – NGK Spark Plug, NGK Racing, 14 mm Thread, 0.749 in Reach, Gasket Seat, Stock Number 5238, Non-Resistor – Set
Fuel – Race Fuel to Dyno Engine
ALL10123 – Allstar Engine Lift Plate, 3/16 Inch Thick, Steel, Zinc Oxide, Spread/Square Bore Carb Flange
Head Options:
MRE-O227S1AH – 227 Aluminum Outlaw Stage 1 Head (358, 376, & 388 Cubic Inch)
MRE-O227S2AH – 227 Aluminum Outlaw Stage 2 Head (358, 376, & 388 Cubic Inch)
MRE-O227S3AH – 227 Aluminum Outlaw Stage 3 Head (358, 376, & 388 Cubic Inch)
MRE-O230S1AH – 230 Aluminum Outlaw Stage 1 Head (400 & 415 Cubic Inch)
MRE-O230S2AH – 230 Aluminum Outlaw Stage 2 Head (400 & 415 Cubic Inch)
MRE-O230S3AH – 230 Aluminum Outlaw Stage 3 Head (400 & 415 Cubic Inch)
Pistons:
930165735 – Mahle 1.330 Compression Height X 4.135″ Bore, 22 Degree ASCS 360 Sprint Dome Piston Set (358 Cubic Inch)
197836035 – Mahle SBC 1.250 Compression Height x 4.135 Bore 12cc Dome 112MM PP+ Piston Set (376 Cubic Inch)
197754735 – Mahle SBC 1.062 Compression Height x 4.135 Bore 9cc Dome 112MM PP+ Piston Set (388 & 415 Cubic Inch)
197754535 – Mahle SBC 1.125 Compression Height x 4.135 Bore 9cc Dome 112MM PP+ Piston Set (400 Cubic Inch)
Cams:
RC-SBC-1 – Roller Camshaft, Small Block Chevy, Standard Tunnel (358, 376, & 388 Cubic Inch)
RC-50-1-903 – Roller Camshaft, Small Block Chevy, 50MM (358, 376, & 388 Cubic Inch)
RC-SBC-5 – Roller Camshaft, Small Block Chevy, Standard Tunnel (400 Cubic Inch)
RC-50-2-903 – Roller Camshaft, Small Block Chevy, 50MM (400 Cubic Inch)
RC-SBC-6 – Roller Camshaft, Small Block Chevy, Standard Tunnel (415 Cubic Inch)
RC-50-3-903 – Roller Camshaft, Small Block Chevy, 50MM (415 Cubic Inch)
Pushrods:
T8025803 – Trend 8.025″ Length .080″ Wall 3/8 Diameter X 16 (STD Cam Tunnel)
T80251657 – Trend 8.025″ Length .165″ Wall 7/16 Diameter X 16 (50MM Cam Tunnel)
Lifters:
66200-16 – Crower Roller Lifters, Mechanical Roller, Vertical Link Bar (STD Cam Tunnel)
B-2004-16 – BAM SBC .904″ OD Needle Roller Lifters Offset B-2004 Series (50MM Cam Tunnel)
Wet Sump Engine:
WS350KA – Dan Olson Racing Products Aluminum Wet Sump Oil Pan 7 1/8″ Deep
10555ST – Melling High Performance, High Volume, High Pressure, Billet Steel Oil Pump With Gasket
ARP230-7001 – ARP Oil Pump Fasteners, Standard Pump, Studs, Hex Head, Chromoly, Black Oxide
MOR23775 – Moroso Oil Filter Adapter, Bypass Eliminator, Billet Aluminum, Kit
MRE-ODBK – Mullins Race Engines Oil Drain Back Kit
SBC Chevy Valve Covers – Wet Sump – SBC Valve Covers – Wet Sump Includes Hardware and Sticker Kit
ALL90072 – Allstar Performance Oil Restrictors, .0850 Inch Orifice Size, 1/4 Inch NPT Thread
Dry Sump Engine:
DS350ADT-12 – Dan Olson Racing Products SBC Standard Pan Rail Late Model Dry Sump Oil Pan With #12 Fitting
MOR23790 – Moroso Oil Pump Block-Off Plates
MOR23782 – Oil Filter Adapter, Bypass, Bolt-On, 10 AN Female Inlet, 10 AN Female Outlet, Billet Aluminum, Black Anodize, Chevy V8, Kit
495108-BL – Fitting, Adapter, Straight, 12 AN Male to 10 AN Male O-Ring, Aluminum, Black Anodized, Each
481312-BL – Fitting, Plug, 12 AN, O-Ring, Allen Head, Aluminum, Black Anodized, Each
MRE-Valley Scavenge – Valley Scavenge for 5th Stage
Center Alum Tray – Center Tray For Dry Sump Engines
SBC Chevy Valve Covers – Dry Sump – SBC Valve Covers – Dry Sump Includes Hardware and Sticker Kit
9288283 – Mahle Pin .927″ X 2.288″ X .168″ Wall Chamfered 128 Grams Heavy Duty DLC COATED
50MM Cam Tunnel Option:
TLA 5020 Z – IKO 50MM Needle Roller Cam Bearing Set
32540050 – Rear Cam Plug 50MM



Horsepower and Torque on Race Fuel:

358 ci
675/525

376 ci
695/545

388 ci
710/565

400 ci
725/590

415 ci
740/615

Spark Plugs Requirements:
NGK R5671A-9 Gapped at .035

Fuel Recommendation:

VP or Sunoco 112

Oil Recommendation:
Maxima 20W/50 – Change Oil Every 5 Nights

Oil Capacity:
Approximately  9 Quarts **No Oil Cooler**
Approximately 10 Quarts **With Oil Cooler**

Laps Before Freshening:
Normal Conditions 1500-1800 Laps

Lash Settings:
.016 – .016 Hot or .012 – .012 Cold
Set or Check Valves every 5-8 nights

Timing:
31 degrees @ 5000 rpm

Additional information

Weight 450 lbs
Dimensions 48 × 40 × 24 in
